Please note: a new version (v4) is on its way >> jump to the end of this site to the information on this

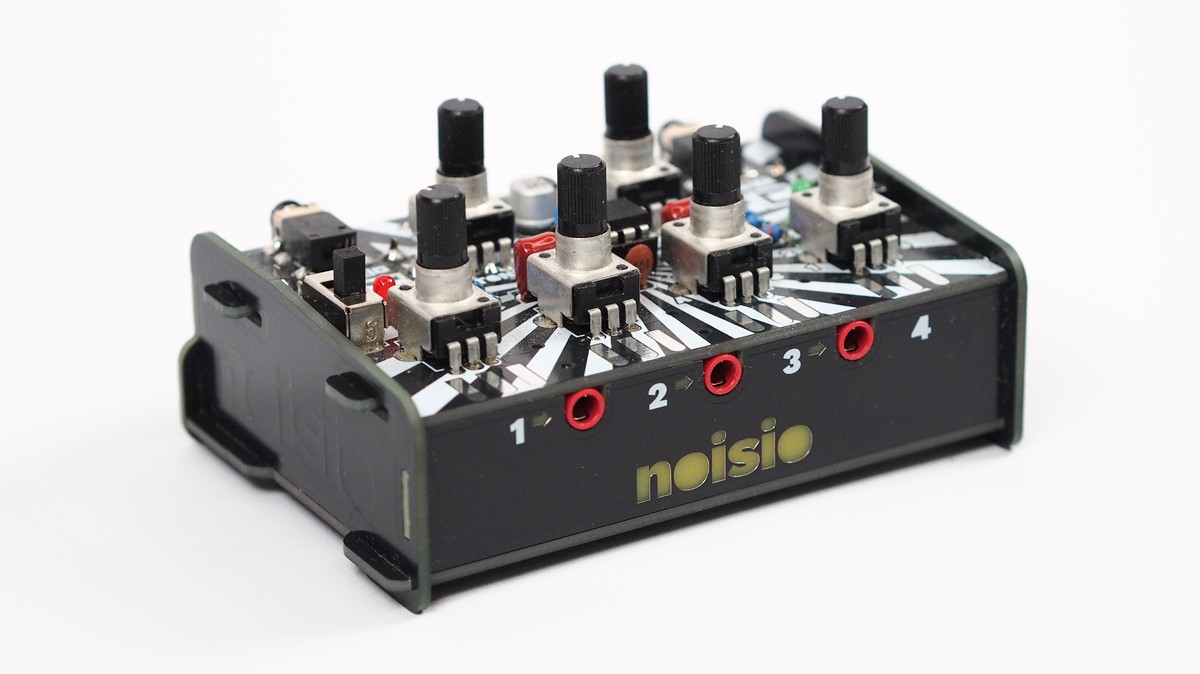

The ATtiny Punk Console (ATPC) is a programmable 8-bit mini synthesizer. From Noise Toy, Drum Sound Generator, Atari Punk Console to Drone Generator - many things are possible! Ready-made synthesizer programs can be uploaded via smartphone or PC, or you can program your own codes using the Arduino IDE.
Further features:
- Body contacts parallel to the potentiometers
- 5V gate input or output (programmable)
- Analog output and filter section
- 6.35 and 3.5mm jack sockets connected in parallel
- 7-15V power supply (center = ground)
- protected against overvoltage/ negative input
- and an audio bootloader! This means that by playing a short audio sequence, the sound and programming of the synthesizer can be changed within seconds.
Status: v3 kit
55,00€
Order
blog | interactive bom | step by step instruction (german) | general solder instructions | docs & codes

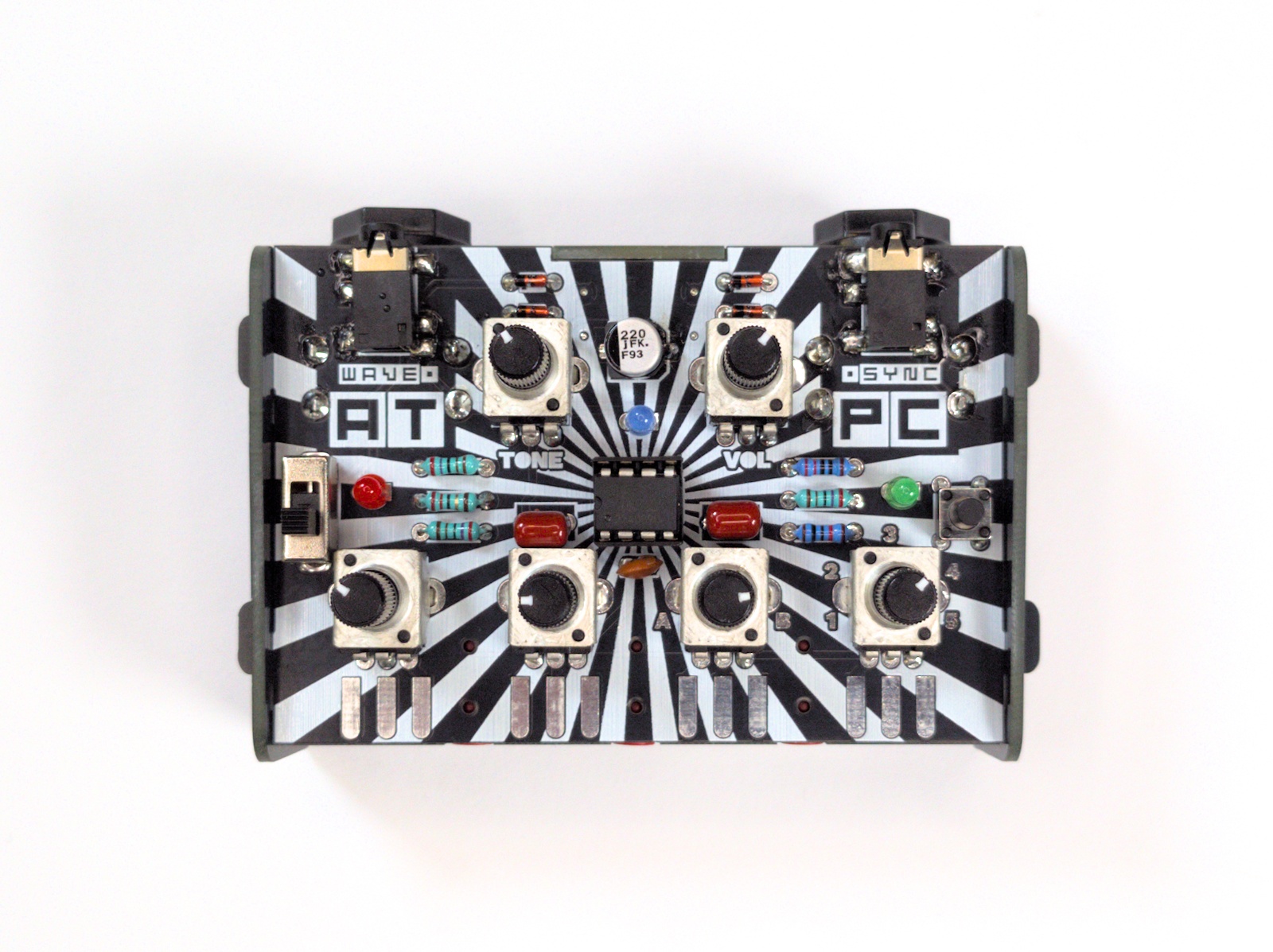

ATPC v4
Version 4 is out! The first workshops are taking place while this website is being rebuilt with the relevant information.

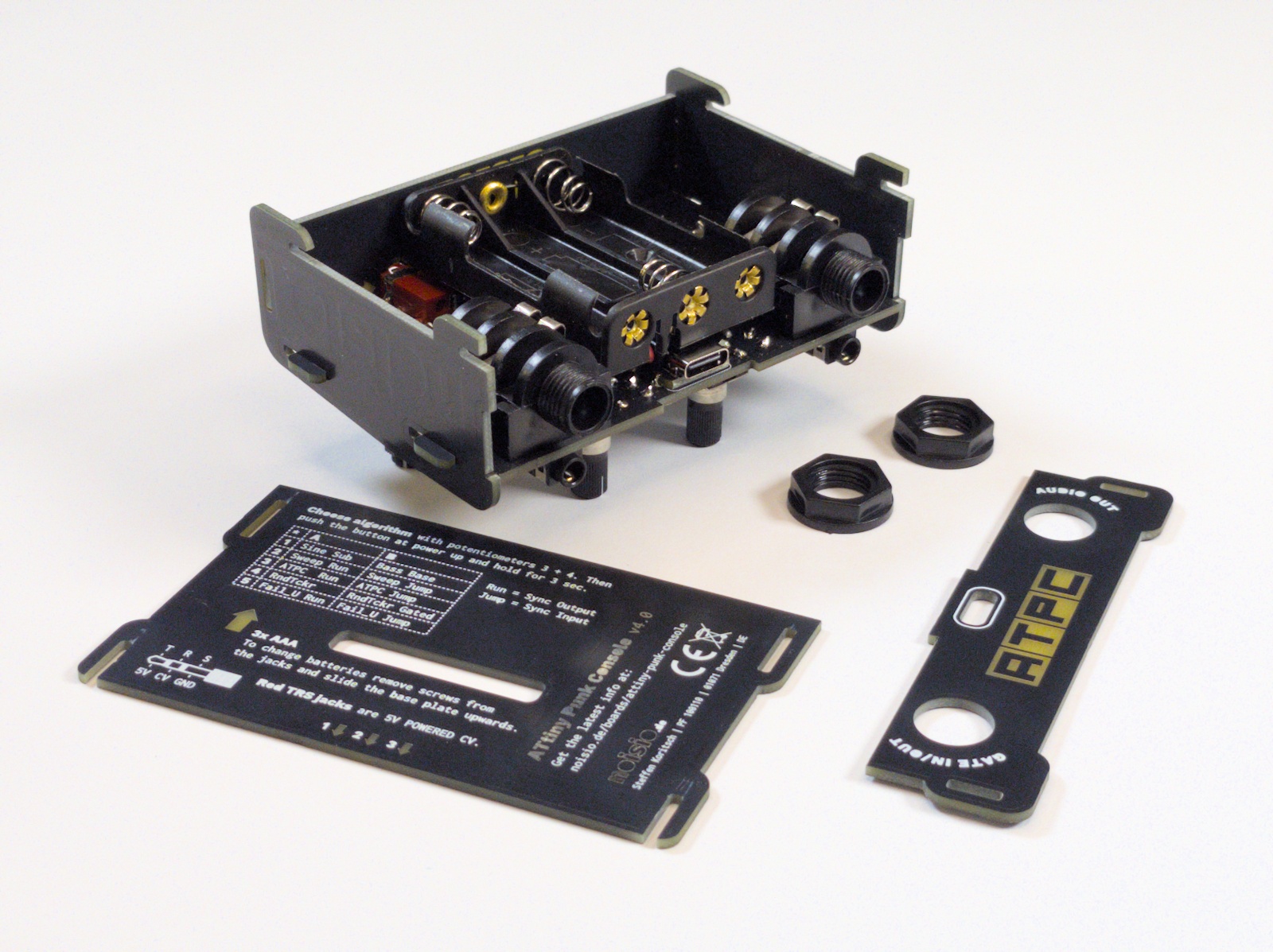

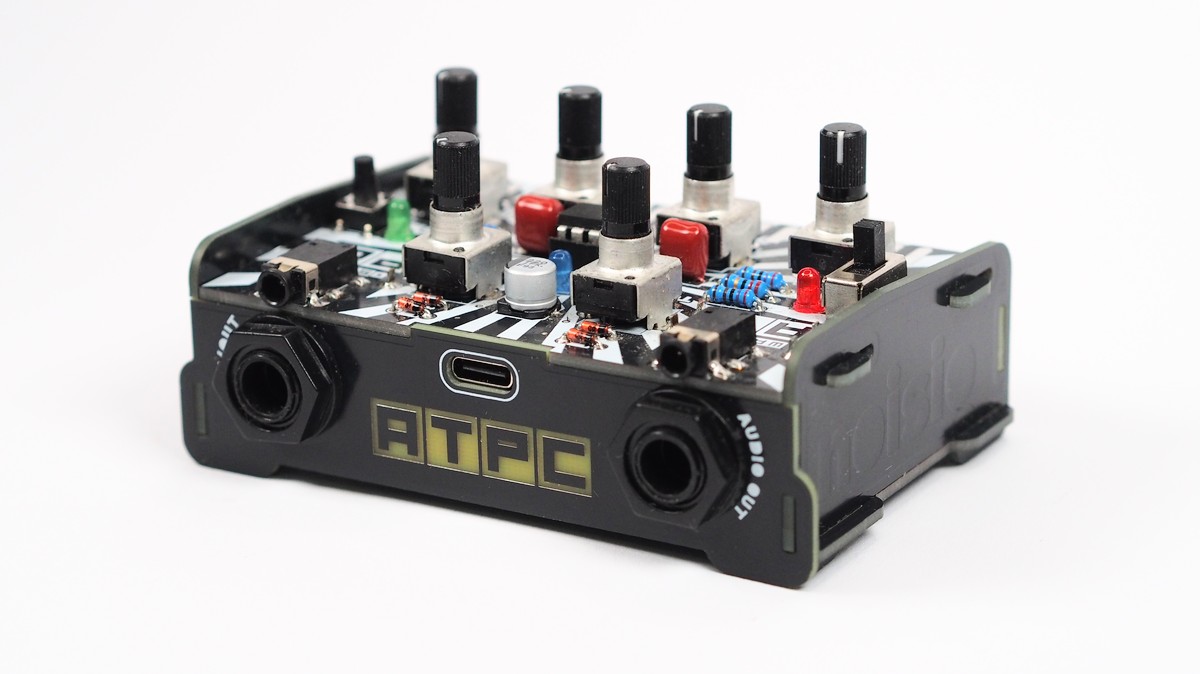

The new edition of the ATtiny Punk Console now offers a choice of 10 synth algorithms at startup, CV Input (as known from ATbase), a new housing and the option of powering the device with USB-C.

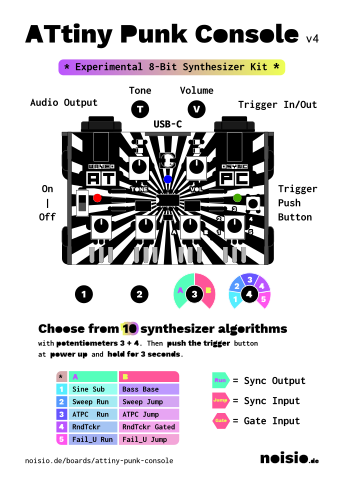

Quickguide
Building instructions

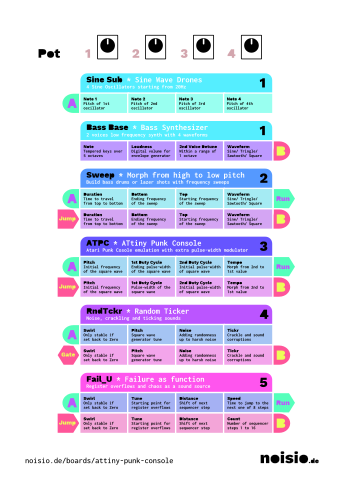

Function overview
Notes on functions ...mixed EN and DE. This is the basis for the upcoming detailed manual.
